STANDRIDGE granite surface plates provide an accurate reference plane for work inspection and for work layout. Their high degree of flatness, overall quality and workmanship also make them ideal bases for mounting sophisticated mechanical, electronic and optical gauging systems. The size and capacity of our modern facility allows us to manufacture to nearly any custom requirement.

All of the granite we use has been carefully measured to establish the modulus of elasticity, allowing us to comply and exceed federal specifications and user requirements.

Our granite surface plates are manufactured in three ledge types as well as standard sizes and grades.
Plates that have ledges are used for clamping purposes only.



Surfaceplate0

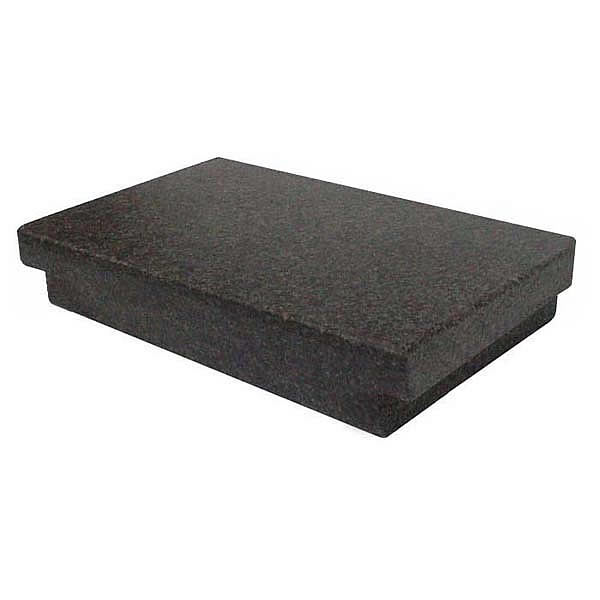

                Surfaceplate2                  Surfaceplate4


OVERALL FLATNESS

The overall flatness specifications of STANDRIDGE granite products meet and surpass the requirements set forth by the Federal Specification GGG-P-463c and ASME B89.3.7-2013. This publication defines the three standard grades of tolerance for surface plates as follows:

AA- Laboratory Grade: For ultra-precision operations in consistent temperature metrology departments.
A- Inspection Grade: For general use in quality control areas
B- Toolroom Grade: For shop work and production checking


CALIBRATION CERTIFICATE

STANDRIDGE “Calibration Certificate” is included with every surface plate guaranteeing overall flatness and repeat gage measurements. Long-form certification or ISO 17025 calibration available upon request for an additional charge.

NIST traceability: Standards employed are calibrated and traceable to NIST or equivalent national or international organization.
